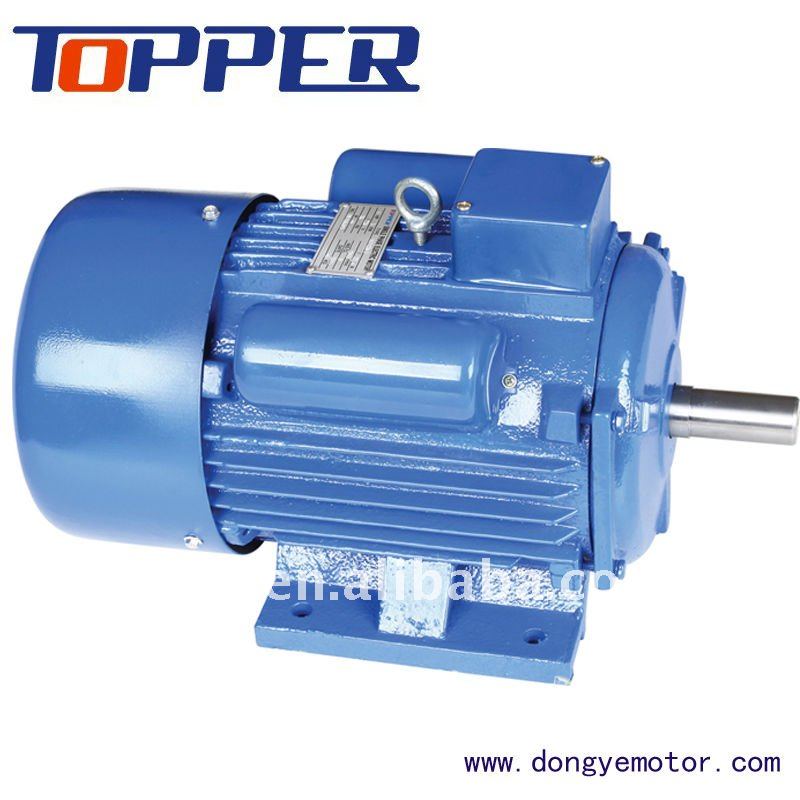

YC series single phase 220V capacitor run and Capacitor start electric motors

FOB Reference Price:Get Latest Price
US $33-197 / Unit | 20 Unit/Units (Min. Order)
Supply Ability:
10000 Set/Sets per Day
Port:
NINGBO
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TOPPER
Model Number:
YC
Usage:
Industrial
Protect Feature:
Enclosed
Function:
Control
Structure:
Asynchronous Motor
Phase:
Single-phase
Speed:
High Speed
Shape:
Tubular
Frequency:
50/60Hz
Output power:
0.18-7.5kw
Certificate:
CE,CCC
Packaging & Delivery
Packaging Details
wooden cases, carton
Delivery Time
within 25-35 days after receive deposit

INTRODUCE

YC series heavy duty single phase capacitor electric motors are suitable for small size machine tools and water pumps, especially for family workshops where only single-phase power supply is available. Motors of this series are integrated with up-to-date design, manufacture with the best quality materials, possess the features of pleasant-looking appearance and meet the IEC standard.

YC series single phase capacitors motors are of IP44 totally enclosed fan-cooling type, rated outputs is 3HP or below, capacitor starting, Within rated voltage and 50Hz, the starting torque is three times more than the rated torque and 60Hz is 2.75 times more. Motors for 4HP or over are of capacitor start and run type. It has concentrate the advantages of high starting torque, smooth running, low temperature rising, low noise and greater overload performance. The designation number and nominative valves are all in conformity with IEC standards.




OPERATING CONDITONS

Altitude:not exceed 1000m

Rated frequency: 50 Hz or 60 Hz

Rated Voltage:220V etc

Protection class:IP44/IP54

Insulation Class:B/F

Cooling method:IC411

Duty:S1(comtinuous)







SPECIFICATION

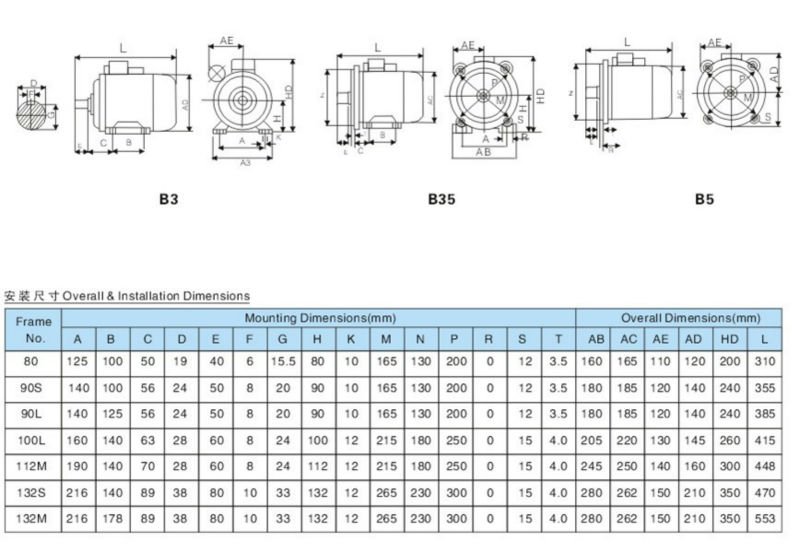

  PICTURE FOR REFERENCE
